MaxRanger4K™ Long Range Wireless Video Doorbell with Base Station & Chime | SWNVK-MR4KVDBKIT
Swann SKU: SWNVK-MR4KVDBKIT-AU
The MaxRanger4K™ Wireless Video Doorbell is the perfect addition to your existing MaxRanger4K™ security system. Featuring cutting-edge long-range Wi-Fi HaLow™ technology, this doorbell can be positioned up to 1,000'/300m* away from your Hub / Base Station & lets you accept deliveries, greet visitors, or warn intruders as if you're standing right there.
The Doorbell's camera captures every detail in stunning 4K resolution & built-in True Detect+™ technology eliminates false alerts, only notifying you about important events. Whether you're at home or on the go, you can use the 2-way audio feature to communicate with visitors or delivery drivers anytime. With the MaxRanger4K™, you get max range security and user-friendly convenience—all in one sleek package.
*1,000'/300m(line of sight) or 330'/100m (in a typical set up).
Note: A backup battery for the Base Station is NOT included with MaxRanger4K Mini kits, but it can be purchased separately for those that want this feature. Some Australian stock may have an incorrect user manual that says a battery is included, this should be disregarded.
-
Long Range Wireless
Long-range Wi-Fi HaLow technology allows you to mount your doorbell up to 1,000'/300m (line of sight) or 330'/100m (in a typical set up) away from the Base Station^
-
Wireless or Wired Install
Long life rechargeable battery or power from existing doorbell wiring
-
True Detect+™
Heat, motion, person & vehicle sensing for reliable alerts
-
Full Coverage in 4K
Provides expanded head-to-toe view, to see who's at the door & what's on the ground
-
Music to Your Ears
Includes portable indoor Chime Unit with 6 selectable melodies
-
Powerful Night Vision
Powerful infrared night vision up to 32'/10m
-
See Beyond Boundaries
Tired of blurry, short-range doorbells? Unleash the power of Wi-Fi HaLow with a staggering 1,000'/300m of wireless reach.^ That's right, see & record in crisp 4K clarity, even at a distant gate or entrance.
-
Speak with Your Visitors
With 2-Way Audio, you're always connected. Greet guests, give delivery instructions, or warn intruders, all from your smartphone—wherever you are.
-
Intelligent Alerts, Fewer False Alarms
True Detect+™ uses advanced heat, motion, person, & vehicle sensing to deliver only the alerts that matter. Say goodbye to endless notifications from swaying branches.
-
Your Doorbell Sees in the Dark
Powerful infrared night vision sees clearly up to 32'/10m, ensuring your property is protected around the clock.
-
Melodies That Matter
No more jarring buzzers! The included portable indoor Chime Unit offers 6 delightful, selectable melodies. Now you can know there's someone there even if your phone isn't handy.
-
Free Local Storage on your Hub / Base Station
Up to 8 cameras / doorbells can be connected to your existing MaxRanger4K™ base unit, with all 8 of them saving their clips to its MicroSD Card. You also have the option to backup clips to Dropbox or Swann’s Secure+ cloud service.
-
Power Your Way
Go 100% wireless with a long-lasting rechargeable battery. Or, seamlessly integrate with your existing doorbell wiring. Flexibility is key, no matter your home's layout.
-
Part of the MaxRanger4K™ Ecosystem
To use this doorbell, you'll need a MaxRanger4K™ Hub/Base Station. It's designed to work within that system, so you can either add it to your current setup or buy a hub.
Introductory Video
MaxRanger4K Video Doorbell - Sneak Peak with Charlie Brown
Swann MaxRanger4K Video Doorbell on CyberShack
Swann Security App
Stay Connected & ProtectedManage Swann DVRs, NVRs, and Wi-Fi cameras all from one app. Live view, playback, and control made easy, no juggling between platforms.
Stay connected on the goWatch live feeds or review footage remotely using Wi-Fi. Peace of mind whether you're at work or away on holiday.
Smart Alerts That MatterReceive push alerts for motion, people, vehicles, and more. Set custom modes like Home or Away for smarter security. *Rich notifications may require a subscription.
Flexible video storageStore footage locally with a DVR/NVR or microSD, no ongoing cloud fees required. Keep full control without extra costs.

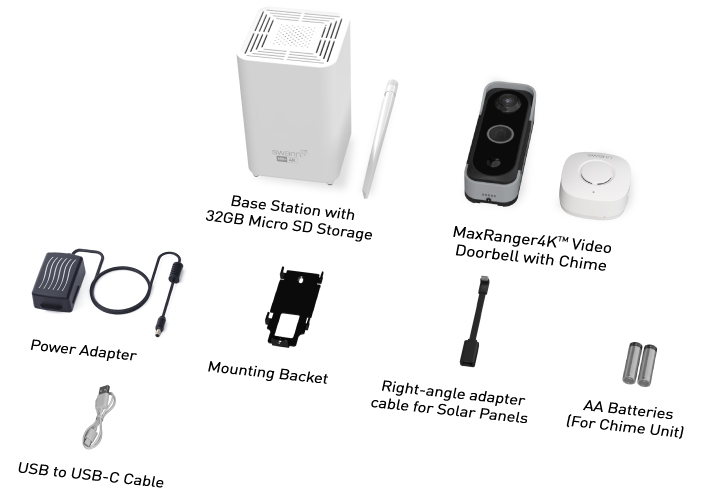

What's Included
What's Included
Chime Unit
MaxRanger4K Base Station with 32GB SD Card Storage
Power Adapter
Mounting Bracket
AA Batteries x 2 (for Chime Unit)
Right-angle adapter cable for Solar Panels
USB to USB-C Charging Cable
Mounting Screws & Hardware
Operating Instructions
Technical Info
MaxRanger4K™ Long Range Wireless Video Doorbell Specifications
| Video | |
|---|---|
| Video | |
| Video Resolution | 4K^ |
| Viewing Angle | 140° Vertical View |
| True Detect+ | Heat |
| Detection Distance | Up to 16ft/5m |
| Night Vision Distance | Up to 32ft/10m (Black & White) |
| Power | |
| Power | |
| Power Source | Rechargeable Lithium-ion Battery |
| Battery Recharging | Via USB-C Cable (included) or Connect to Existing Doorbell Wiring |
| Supported Power | 5V DC / 12-24V AC |
| Audio | |
| Audio | |
| Audio | Yes |
| General | |
| General | |
| Dimensions (WxDxH) | 2.2\ x 1.6\ x 5.75\/ 56mm x 41mm x 146mm |
| Weight | 0.70lbs / 317g |
| Operating Temperature | -4°F to 140°F/ -20°C to 60°C† |
| Indoor/Outdoor | Indoor & Outdoor (weatherproof IP56 rated) |
| Wi-Fi Frequency | Ultra Long Range 900MHz Wi-Fi HaLow™ (MaxRanger4K Hub needed) |
| Wireless Range | Up to 1000'/300m (open air) |
| App (iOS & Android™) | Swann Security App |
| † Battery performance may be affected by extreme cold. | |
| ^ Low Wi-Fi signal strengh & local conditions may cause lower resolution video recording. | |
MaxRanger4K™ Base Station Specifications
| Video | |
|---|---|
| Video | |
| Video Input | Up to 8 Wireless Cameras / Doorbells |
| Recording | |
| Recording | |
| Storage | Includes 64GB MicroSD Card (supports up to 512GB) |
| Software | |
| Software | |
| Smartphone App | Swann Security App |
| Handheld Device Supported | iOS |
| General | |
| General | |
| Dimensions | 3.94\ x 3.94\ x 6.1\ / 100mm x 100mm x 155mm |
| Wireless Type | Ultra Long Range 900MHz Wi-Fi HaLow |
| Wireless Range | Depends on camera / doorbell |
| Emergency Power Backup | Optional. Up to 5 hours emergency power supply when battery is inserted in Base Station. Battery can be purchased separately. |
| Requirements | |
| Requirements | |
| Mobile Device or Tablet using iOS/iPadOS (15.0 & later) or Android (10.0 and later) | |
| High Speed Internet Connection with Minimum Internet Upload Speed of 4Mbps | |
| * Based on 500 seconds of video recording per camera per day. | |
| # Based on sensor light being on & adequate ambient light including street lights | |
| ^ Low Wi-Fi signal strength & local conditions may cause lower resolution video recording. | |
MaxRanger4K™ Long Range Wireless Video Doorbell - Chime Speaker Unit Specifications
| Chimes | 6 Melodies |
| Power Source | 2 x AA Batteries (included) |
| Dimensions (WxDxH) | 2.76\ x 1.38\ x 2.76\/ 70mm x 35mm x 70mm |
| Indoor/Outdoor | Indoor Only |
Why you can trust Swann
With over 35 years of global security expertise, Swann is a trusted leader in DIY and professional surveillance. Our products are backed by industry-leading innovation, secure cloud and local storage, and dedicated customer support – giving you peace of mind, 24/7.
